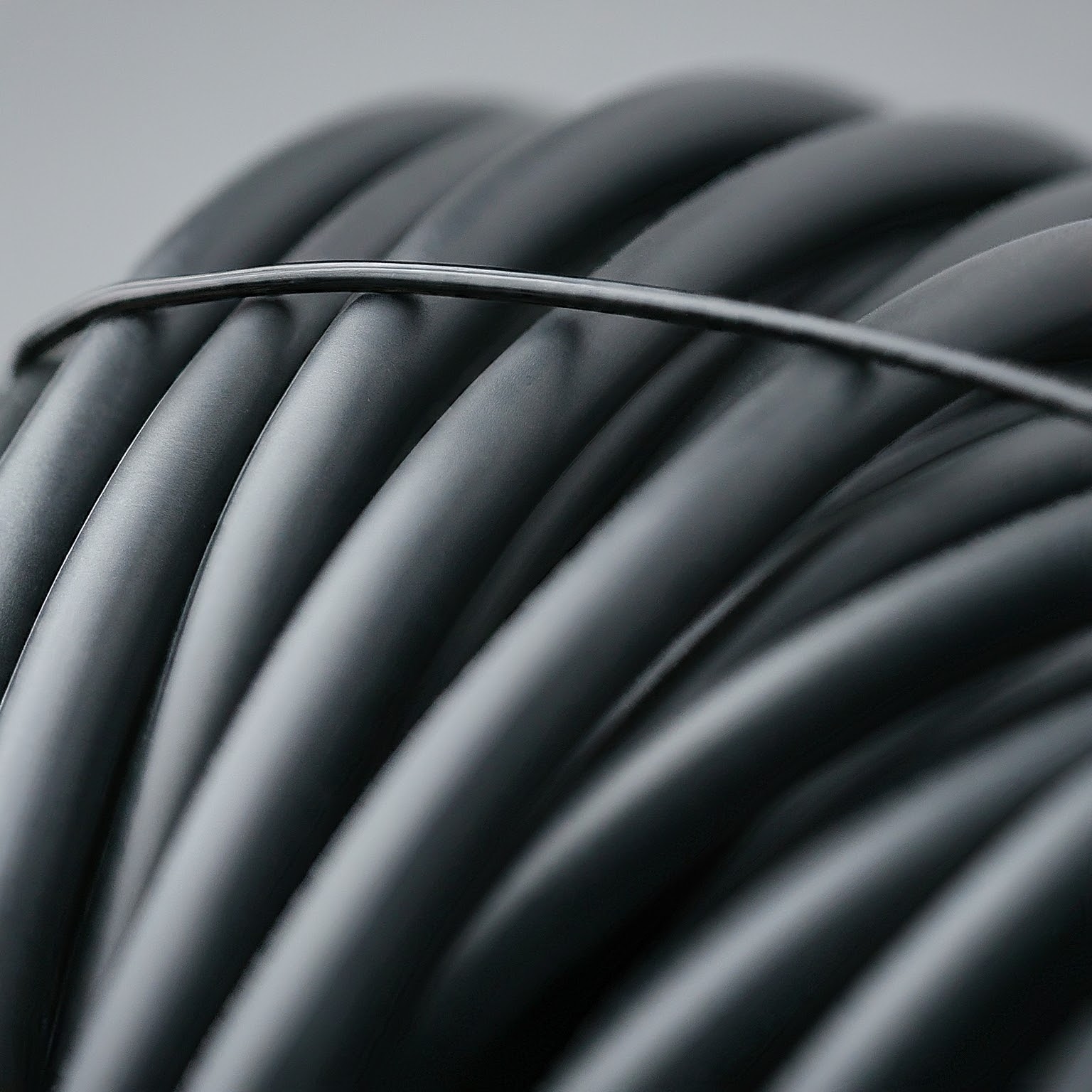

CCTVs are everywhere in the world, and to make them work, the most important component of CCTV is their cables. Essentially, the CCTV cables allow video captured by the CCTV to be transmitted. Each type of cable has a different function. Types of CCTV cables are:
Co-axial cables: These cables consist of a conductor covered by a conducting shield and insulating layers, these help the cables to protect the cables from the electromagnetic effects. It is used to transmit the video data signals to a long range.
Twisted pair cables: These are used for reducing the interface as they consist pair of insulated copper wires twisted together. Used in IP camera installation and use for both video and audio transfer.
Optical fiber cables: Such strands are usually assembled from glass or plastic tubing elements and used to send data signals as light signals and mostly used in wide area network applications for long-range, high-speed, and larger data transmission distances.
Ethernet cables: Cat5e and Cat6 are the types of ethernet cables that are used as CCTV cables. Ethernet cables are used for transferring data like video and audio through an IP network. Mostly these cables are used for CCTV that have IP addresses.
Benefits
Easy Installation – Flexible structure allows smooth routing in tight spaces.
Enhanced Durability – Resistant to wear, moisture, and chemicals.
Improved Safety – Insulated cores minimize short-circuit risks.
Lightweight – Easier to handle and transport.
Low Maintenance – Less prone to damage, reducing repair costs.
