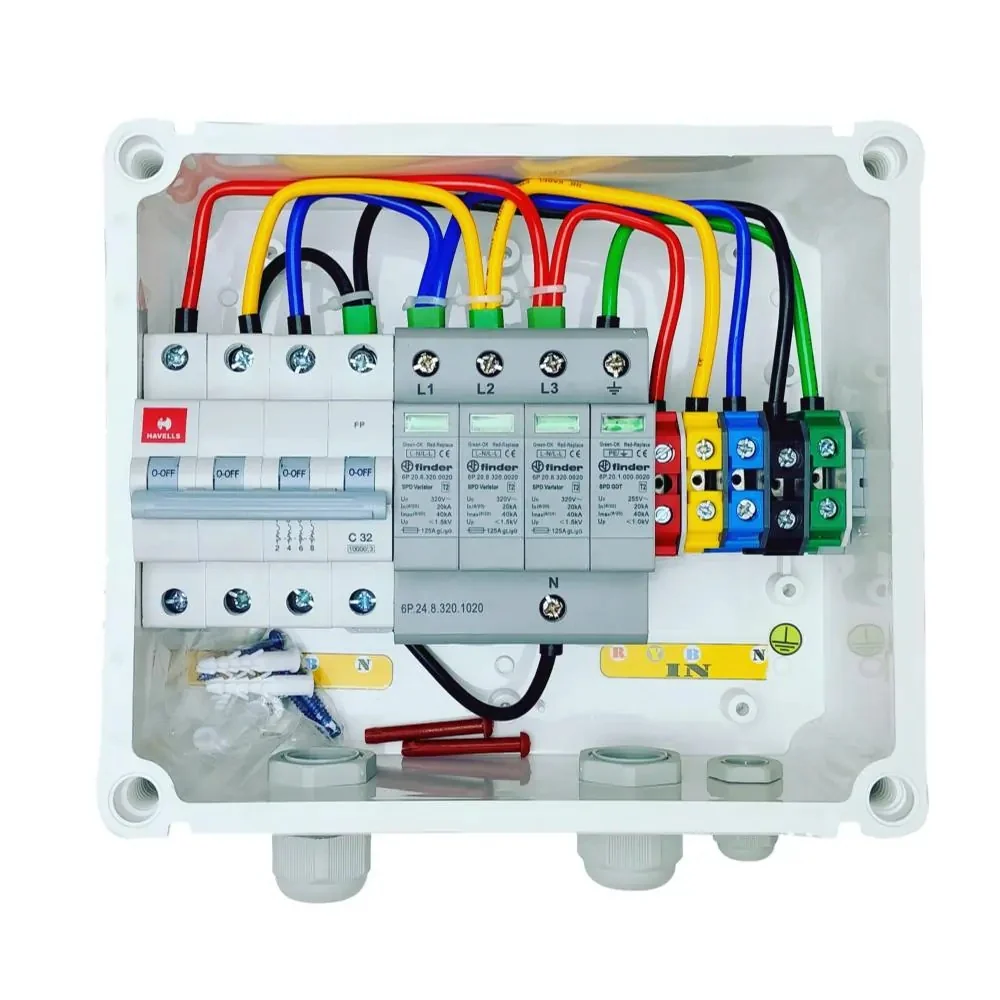

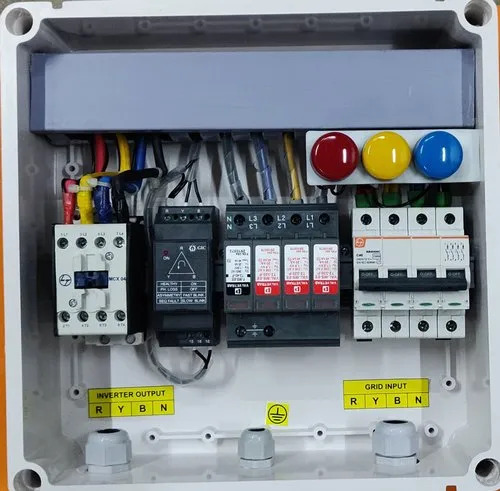

A Solar ACDB is an electrical enclosure that houses surge protection devices, miniature circuit breakers, and other protective equipment. The Solar ACDB receives output power from the inverter and regulates power flow to the input side of the consuming load at the output. It usually consists of MCB, MCCB, SPD, contactor, and terminal block in a weather-proof and fire-retardant cabinet. The ACDB allows safe distribution of alternating current to the load. Moreover, it prevents overloading or short-circuiting of the system. It also disconnects the inverter from the load for safe maintenance. This is used for residential, commercial, and industrial solar systems. ACDBs ensure a solar energy system’s safety, reliability, performance, and electrical safety compliance.

Benefits
1) The inverter and other connected loads are immune to electrical faults.
2) Solar AC Power is safely supplied to the main panel board.
3) There is some amount of surge protection.
4) Makes it easy to isolate during maintenance or an emergency.
5) Prevents overloaded circuits and shorts, which increases the longevity of electrical systems.
